CAST
METAL LETTER MOUNTINGS
|
|
|
Flush
Mount Studs are set in adhesive cement. There is no
space between the letter and the surface.
|
|
|
Projected Jam Nut Mount Studs are set in adhesive cement.
Stainless steel jam nuts are inserted between the letter
and the mounting surface. |
|
|
Spacer Mount Studs are set in adhesive cement. Pre-cut
spacers are inserted between the letter and the mounting
surface.Specify standoff required not spacer length. |
|
|
Corrugated Nut Mount where you have access to the rear
of the wall, washers and nuts are used on both sides of
it. |
|
|
Flat Metal Wall Mount where you have access to the rear
of the wall, washers and nuts are used on both sides of
it.
|
|
|

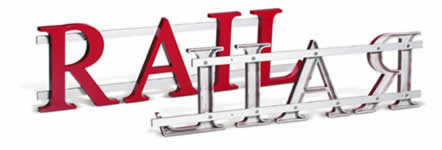

Double
Rail Installation Two rows of 1/4"thick x 3/4"high
aluminum bar secured to back of letter with stainless
steel screws. Bar is standard with baked enamel finish.
Available on letters 4" to 24" high.
|
|
|

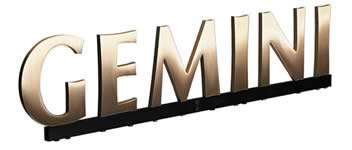

| Bottom
Rail Installation Letters drilled and tapped from the
bottom with stainless steel studs going through aluminum
tubing. Tube is standard with black baked enamel finish.
Available on letters 4" to 24"high; 3/8"
or thicker. $11.00 per letter. Ships unassembled. |
|
|
Bottom Stud Installation Letters drilled and tapped from
the bottom. Customer to provide their own bar or channel
for mounting. $3.60 per letter. Letters with round bottoms
(ie. O,S,G etc) will have a flattened base to receive
studs. Exterior applications greater than 6" letters
require tiebacks. |
